Crest® Condensing Boiler
The performance of the CREST boiler has changed the way the industry views fire-tube boilers.
- RealTime 0₂ Feedback™ Option
- Up to 96.2% Thermal Efficiency
- Low Emissions Reduces Carbon Footprint
- 12 Inputs from 750,000 to 6 Million Btu/hr
- Up to 25:1 Turndown Ratio
- Flexible Flow Rates up to 600 gpm
- Features CON·X·US® Remote Connectivity and SmartTouch™ operating control
Crest Condensing Boiler
With a BTU range of 750,000 to 6 million, CREST boilers have the power and installation flexibility to provide space heat in any commercial application—all while operating at up to 96.2% thermal efficiency.
The First Name in Efficiency
CREST boilers are equipped with a top-mounted micro-metal fiber burner, engineered specifically for fire-tube technology. The system is designed to ensure smooth, quiet modulating combustion with up to 25:1 turndown. CREST is designed for efficiency to reduce your customer’s fuel bills.
Reduce Installation Cost with Variable Flow Technology
Installation is streamlined, without the time and materials cost of primary-secondary system/boiler piping.High Efficiency with Minimum Supply Pressure
CREST operates reliably with supply gas pressure as low as 4 inches water column. Negative regulation (neg/reg) technology draws gas into a pre-mix combustion system instead of relying on utility pressure through the gas valve. Operation is steady in low gas pressure systems or when peak gas supply demand occurs.Peace of Mind When It Matters Most
Cascade redundancy provides peace of mind because it helps ensure that a CREST boiler system will always deliver reliable performance with no downtime. Cascade sequencing can be programmed for Lead-Lag or Efficiency Optimized operation.
Flexible Venting Options
CREST offers 6 venting options, and it permits direct-vent air intake and exhaust runs up to 100 equivalent feet using PVC, CPVC, polypropylene or stainless steel pipe. Plus, multiple units can be common-vented to reduce time and materials cost.Superior Fire-Tube Heat Exchanger Design
The patented Wave™ configuration creates turbulence as flue gas products flow down the tube, scrubbing the energy from the flue products. The Wave design enhances the life of the heat exchanger by allowing the tubes to flex so they operate stress free with none of the adverse effects suffered by traditional fire-tube boilers.
The product images shown are for illustration purposes only and may not be an exact representation of the product.
Control From Anywhere
From wherever you are, the CON·X·US option lets you use any Internet-capable device to link up with any SMART SYSTEM branded control on an unlimited number of applicable units. With CON·X·US, you’re always in touch and in control. Do regular CON·X·US checks for all your customers, and let them know you’re monitoring their unit’s performance.
- Adjust setpoints, domestic hot water, reset curves, pump delays and more, using the CON·X·US interactive display.
- Status alerts via text or e-mail let you know when equipment needs attention.
Smart Touch
This ultimate control gives installers and facility managers access to all of the information they need to set up, troubleshoot and monitor all equipment functions with a multi-color touchscreen interface. Diagnostic information and system status are presented in real words, not codes.
CON·X·US Standard Equipment
Cascade Sequencer for up to 8 units
Loch-N-Link
Low Water Flow Safety Control and Indication
Ramp Delay (Boiler Only)
Sizing up Crest Condensing
Boiler Advantages
A look at the options that CREST with Hellcat Combustion Technology can offer.

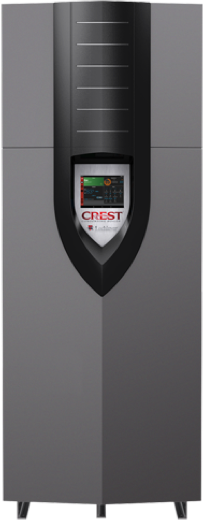

Crest

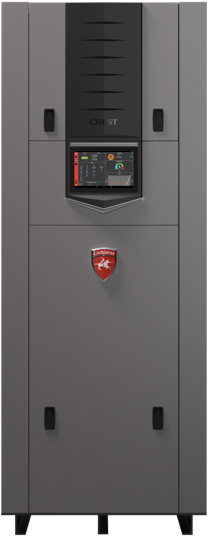

CREST w/HELLCAT™ Combustion Technology
Models
Input Range
Outdoor Availability
RealTime O₂ Feedback™
RealTime O₂ Trim™
SMART TOUCH™ Display
Maximum Direct Vent Length
LED Identification Lights on Control Boards
CON·X·US® Remote Connect
Minimum Turndown
Literature
See the product literature, manuals, etc...
Sales Brochure
Crest Condensing Boiler FBN0751-6001 Brochure
9.3 MB
Crest Condensing Boiler FBN751-6001 Brochure - French
3.6 MB
Crest Outdoor Condensing Boiler Brochure
2.7 MB
Crest Outdoor Condensing Boiler Brochure - French
2.9 MB
CREST RealTime 0₂ Feedback™ Sales Brochure - French
CREST RealTime 0₂ Feedback™ Sales Brochure _ French
796.5 KB
Submittals
Crest Condensing Boiler (FBN0751-6001) Submittal
1.5 MB
Crest Condensing Boiler (FBN0751-2001) Submittal - French
1.6 MB
Crest Outdoor Condensing Boiler (OFN0750-6001) Submittal
1.7 MB
Crest Outdoor Condensing Boiler (OFN0750-6001) Submittal - French
1.9 MB
Crest Condensing Boiler Dual Fuel Submittal
1.6 MB
Crest Condensing Boiler Dual Fuel Submittal - French
1.5 MB
Crest Condensing Boiler Submittals - Seismic Kit
339.3 KB
Crest Condensing Boiler Submittals - Seismic Kit- French
337.5 KB
Backflow Preventer Submittal
1.1 MB
Backflow Preventer Submittal - French
675.6 KB
Crest Condensing Boiler Submittals - Seismic Kit
1.1 MB
Crest Condensing Boiler Submittals - Seismic Kit - French
342.7 KB
Typical Specifications
Crest 3-Part Spec
Crest 3-Part Spec - French
Crest Typical Specification FBN 751-6001
Crest Typical Specification FBN 751-6001 - French
Outdoor Crest Boiler Typical Specification
Outdoor Crest Boiler Typical Specification - French
Product Summary
CREST Commercial Boiler (FBN0751-2001) Product Summary
175 KB
CREST Commercial Boiler (FBN0751-2001) Product Summary - French
CREST Commercial Boiler (FBN2501-6001) Product Summary
64.3 KB
CREST Commercial Boiler (FBN2501-6001) Product Summary _ French
204.5 KB
Crest Outdoor (OF0751-2001) Product Summary
77.3 KB
Crest Outdoor (OF0751-2001) Product Summary - French
190.3 KB
Crest Outdoor (OF2501-6001) Product Summary
71.3 KB
Crest Outdoor (OF2501-6001) Product Summary - French
190.3 KB
Engineering Schedule
2-D Engineering Drawings
Full Flow - 2 Boilers
Primary Secondary - 1 Boiler
Primary Secondary - 1 Boiler, 1 Indirect - Priority
Primary Secondary - 1 Boiler, 1 Indirect - Zone
Primary Secondary - 1 Boiler - Low Loss Header
Primary Secondary - 2 Boilers, 1 Indirect - Priority
Primary Secondary - 4 Boilers, 1 Indirect - Priority
Manuals
Crest Condensing Boiler - FB 751-6001 - I&O Manual - English
29.1 MB
Crest Condensing Boiler - Outdoor Models OF 751-6001 Supplemental Manual - English
5.3 MB
Crest Condensing Boiler - FBD 751-6001 - Dual Fuel Sup Manual - English
5.2 MB
Part Sheets
Crest Boiler 751-2001 Parts Sheet
1.4 MB
Crest Boiler 2501-6001 Parts Sheet
2.1 MB
Crest Boiler Outdoor 751-2001 Parts Sheet
1.5 MB
Crest Boiler Outdoor 2501-6001 Parts Sheet
1.9 MB
Crest Boiler Dual Fuel 751-2001 Parts Sheet
744.7 KB
Crest Boiler Dual Fuel 2501-6001 Parts Sheet
1.2 MB
Plan View Drawings
FBN0751 Plan View Drawing
925.9 KB
FBN1001 Plan View Drawing
880.2 KB
FBN1251 Plan View Drawing
908.6 KB
FBN1501 Plan View Drawing
953.2 KB
FBN1751 Plan View Drawing
885.3 KB
FBN2001 Plan View Drawing
876 KB
FB2501 Plan View Drawing
FB3001 Plan View Drawing
FB3501 Plan View Drawing
FB4001 Plan View Drawing
FB5001 Plan View Drawing
FB6000 Plan View Drawing
Revit Product Drawings
FBN0751-2001 Revit Product Drawing
688 KB
FBN2501-6001 Revit Product Drawing
FBD0751-2001Revit Product Drawing
444 KB
FBD2501-6001 Revit Product Drawing
Piping Diagrams
Crest Condensing Boiler - Multiple Boiler, Full Flow - Piping Diagrams
397.9 KB
Crest Condensing Boiler - Multiple Boiler, Primary Secondary - Piping Diagrams
621.6 KB
Crest Condensing Boiler - Single Boiler, Full Flow - Piping Diagrams
392.6 KB
Crest Condensing Boiler - Single Boiler, Primary Secondary - Piping Diagrams
603 KB
Wiring Diagrams
Crest FB0751-2001 Ladder Wiring Diagram
1.1 MB
Crest FB0751-2001 Wiring Diagram
1019.1 KB
Crest FB2501-3501 Ladder Wiring Diagram
551.2 KB
Crest FB2501-3501 Wiring Diagram
605.7 KB
Crest FB4001-5001 Ladder Wiring Diagram
556.3 KB
Crest FB4001-5001 Wiring Diagram
595.3 KB
Crest FB6001 Ladder Wiring Diagram
562.6 KB
Crest FB6001 Wiring Diagram
608.5 KB
Start-Up Forms
Efficiency Curves
Archive
Crest Condensing Boiler - FBN751-2001 (old rev) - I&O Manual
19.9 MB
Crest Condensing Boiler - FBN1500-5000 I & O Manual
8.3 MB
Crest Condensing Boiler - FB 2500-6000 - I & O Manual
11.3 MB
Crest Condensing Boiler - FB1500-5000 Dual Fuel Sup Manual
2.2 MB
Crest Condensing Boiler - FBN2500-5000 Dual Fuel Sup Manual
2.4 MB
Crest Condensing Boiler - FB 2500-6000 - Dual Fuel Sup Manual
2.7 MB
Crest Condensing Boiler - FBN1500-5000 Service Manual
3.9 MB
Crest Condensing Boiler - FB 2500-6000 - Service Manual
6.4 MB
Crest Condensing Boiler - FBN1500-5000 User Manual
607.1 KB
Crest Condensing Boiler - FB 2500-6000 - User Manual
559.3 KB
Crest Condensing Boiler - FBN751-2001 (old rev) I&O Manual FRE CAN
19.5 MB
Crest Condensing Boiler - FBN1500-5000 - I&O Manual - FRE CAN
8.1 MB
Crest Condensing Boiler - FB 2500-6000 - I&O Manual - FRE-CAN
462.8 KB
Crest Condensing Boiler - FBN1500-5000 User Manual FRE CAN
488.3 KB
Crest Condensing Boiler - FB 2500-6000 - User Manual - FRE-CAN
491.6 KB
Crest Condensing Boiler - FBN1500-5000 Dual Fuel Sup Manual - FRE CAN
2 MB
Crest Condensing Boiler - FBN2500-5000 Dual Fuel Sup Manual FRE-CAN
2.2 MB
Crest Condensing Boiler - FB 2500-6000 - Dual Fuel Sup Manual FRE-CAN
2.6 MB
Warranty
Maintenance Checklists
Crest Condensing Boiler FBN0751-6001 Brochure
9.3 MB
Crest Condensing Boiler FBN751-6001 Brochure - French
3.6 MB
Crest Outdoor Condensing Boiler Brochure
2.7 MB
Crest Outdoor Condensing Boiler Brochure - French
2.9 MB
CREST RealTime 0₂ Feedback™ Sales Brochure - French
CREST RealTime 0₂ Feedback™ Sales Brochure _ French
796.5 KB
